How to Replace a Speaker(s) on a Chromebook
Check Warranty Eligibility:
Before you start a Chromebook repair or replacement process, you must confirm the warranty type and coverage for the device! Access below URLs to learn more:
Caution!
- Avoid puncturing, crushing, dropping, mutilating, or penetrating the battery with foreign objects.
- Refrain from using tools to pry or apply pressure to the battery.
- If a battery becomes stuck due to swelling, do not attempt to free it as punching, bending, or crushing a Lithium-ion battery can pose serious risks.

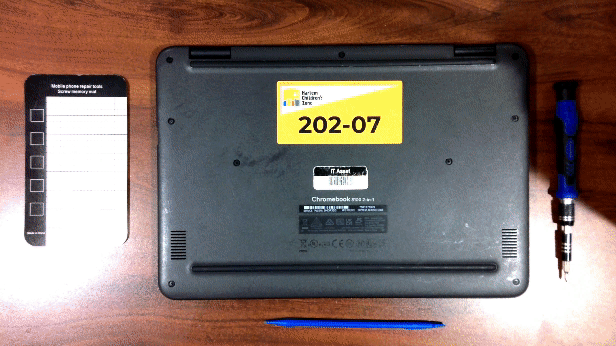

- Using a Philips #1 screwdriver, remove all nine 5mm screws securing the back cover

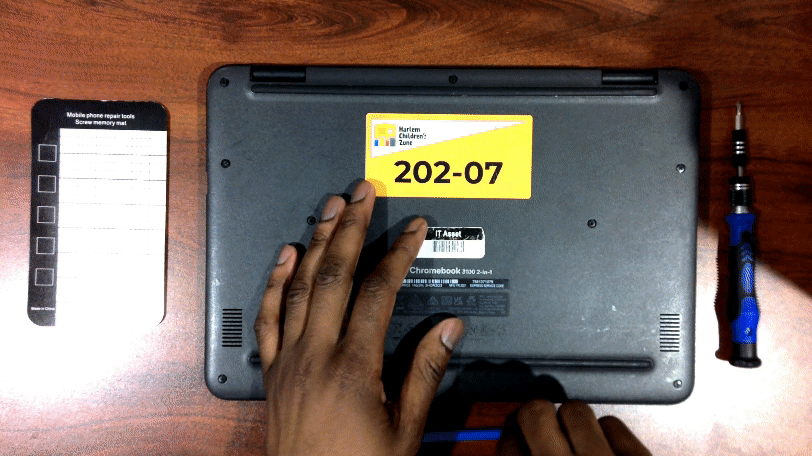

- Gently pry the back cover off the device using an opening tool

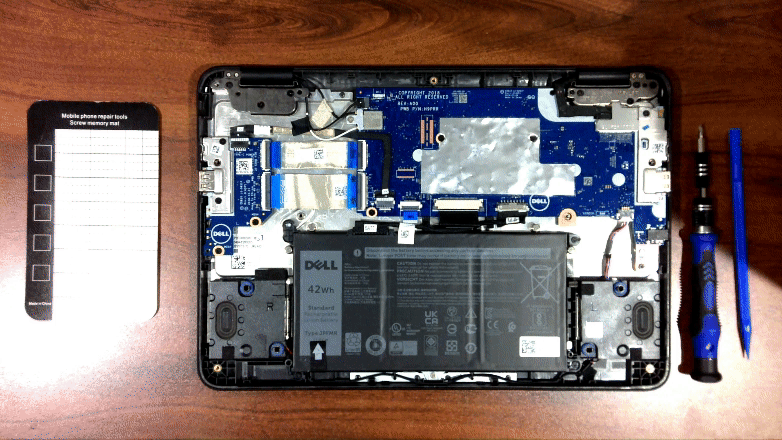

- Disconnect the battery cable from the connector on the system or main logic board

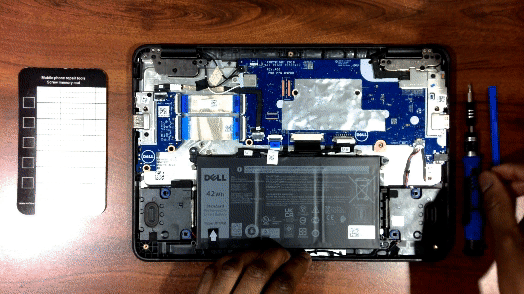

- Using the same Philips #1 screwdriver, remove the three 4mm screws that hold the battery in place
- Carefully remove the battery from the device

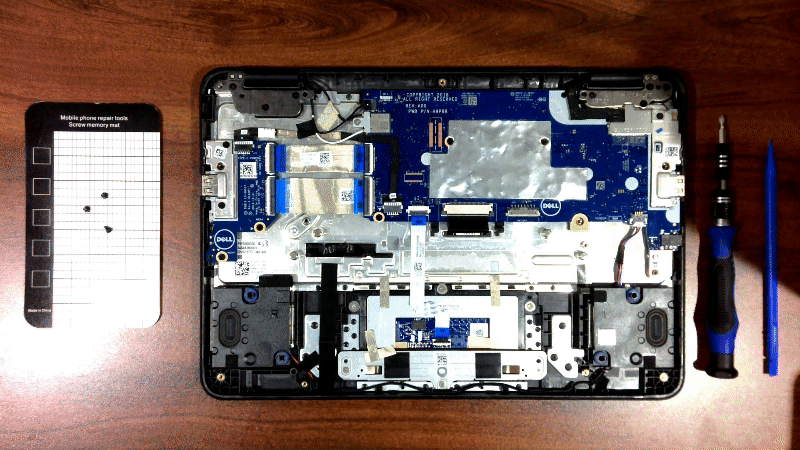

- Next, disconnect the speaker cable from the connector on the system or main logic board
(Remove the adhesive tape that secures the speaker cable)

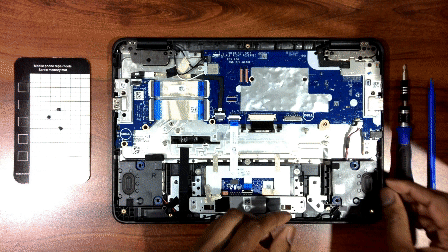

- Lift and remove the speakers from the device
(Remove the speaker cable from the retention clips)
